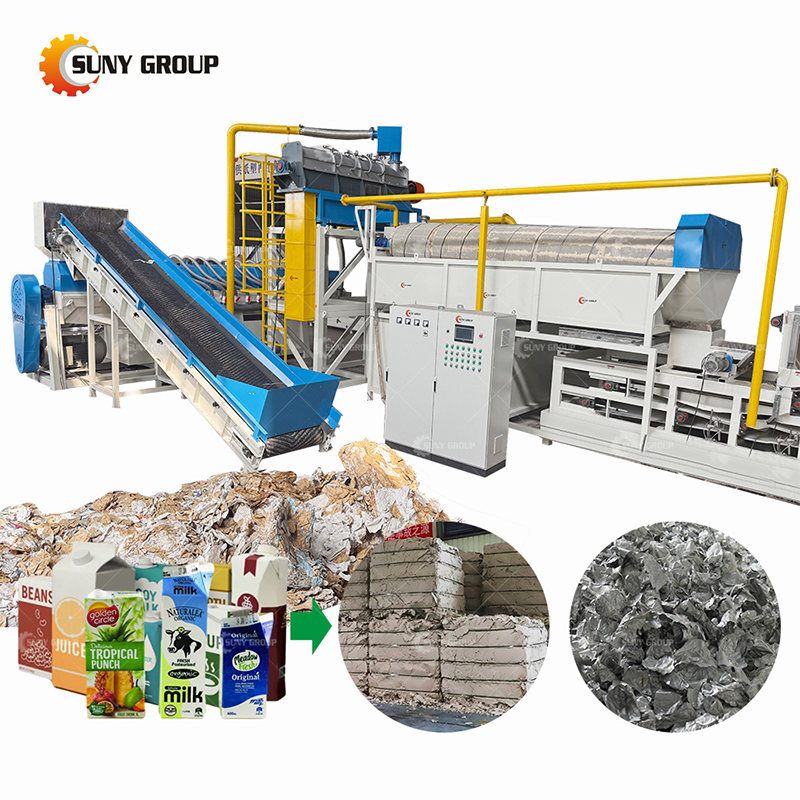

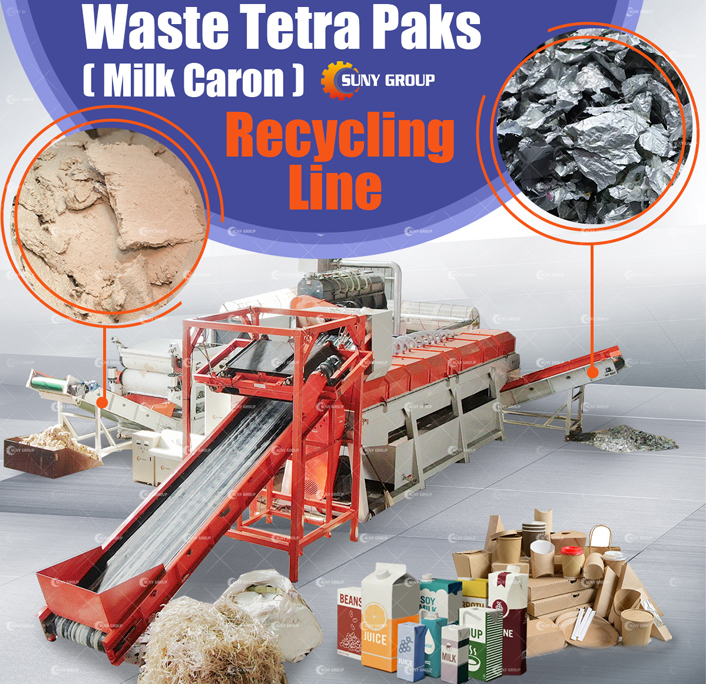

Paper- Plastic Recycling Plant
The Paper-Plastic Recycling Machine integrates crushing, pulping, separation, and drying into a fully automated process. It effectively delaminates paper and polymer layers without damaging fiber quality, achieving high recovery rates and clean outputs suitable for industrial reuse.

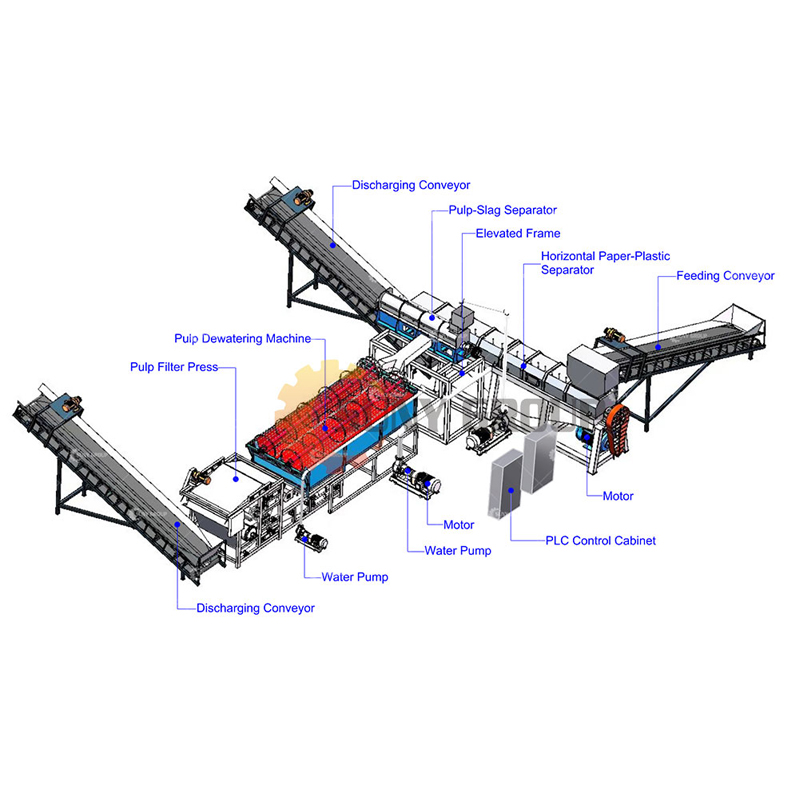

The machine utilizes a process consisting of raw material pretreatment → high-speed crushing → paper-plastic separation → pulp deslagging → pulp dewatering → pulp filter pressing. It effectively separates plastic film, three-layer composite aluminum film, and laminated layers from paper fibers.
Customers can choose from various configurations based on their production capacity requirements, including 500 kg/h, 1 t/h, or even large-scale production lines exceeding 3–5 t/h.
- Application: Coated Paper， Kraft Paper Bag， Tetra Pak， Combibloc， Paper-Plastic Composite Woven Bag
- Final Product: Paper， Plastic， Aluminum.
WORKING PROCESS
1. Paper-Plastic Separator
According to the characteristics of paper-plastic composite materials, the paper-plastic mixture is separated by adding water and the friction of the main shaft screen plate.
2. Pulp-Slag Separator
It can remove light and heavy debris and decompose small pieces of paper in the fiber without blocking the screen plate, and hard debris will not damage the screen plate. The factory does not need to stop operation frequently for cleaning. It is mainly used for sorting tailings after fiber separators and pressure screens.
3. Pulp Dewatering Machine
It has the characteristics of simple structure, easy operation, and the ability to obtain materials of different particle sizes within a certain range by replacing the screen. It is suitable for the sorting of different particles.
4. Pulp Filter Press
It is a mechanical equipment developed and designed for the recycling of pulp separated by paper-plastic separator
APPLICATION VIDEO

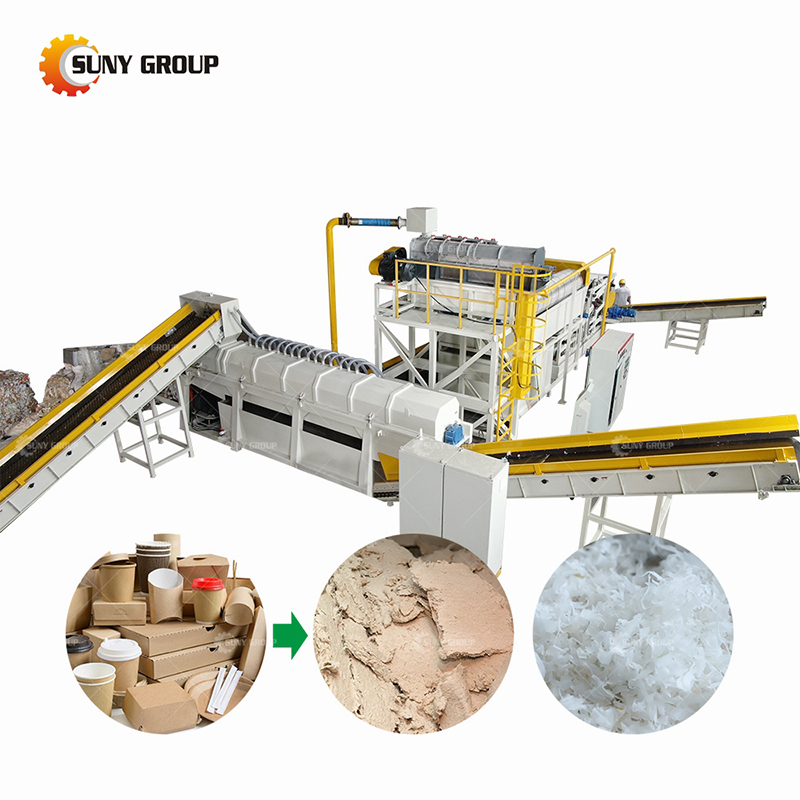

polycoated Paper Recycling Solutions
Disposable paper cups, fast food containers, takeout containers, waxed paper, label liner, etc. Paper fiber recovery rate ≥ 95%;
plastic reusability rate ≥ 90%;
Milk Cartons (Tetra Pack) Recycling
Milk cartons, juice cartons, Tetra Pak, etc.Are processed using a low-energy, closed-loop water system and no chemical additives. The final product is high-purity pulp and plastic pellets.
Mixed Paper and Plastic Waste Recycling Equipment
Mixed Paper and Plastic Waste,composite paper scraps, waste rolls, damaged packaging, etc.
From printing plants, packaging factories, paper mills, or recycling centers.
Industrial Paper-Plastic Separation Machine
Composite film/aluminum-plastic-paper three-layer composite material
Paper-plastic woven bags, some medical packaging, etc. Our machine can separate paper fibers, plastic, and aluminum layers in multiple stages, with high-volume recycling and automated production.
Ready to Transform Your Recycling Process?
Get a customized quote tailored to your specific needs. Our experts are ready to help you choose the perfect solution.
Applications and finished products
Suny Group’s paper-plastic separation and recycling equipment is designed specifically for processing paper-plastic composite materials, especially the following types: paper/plastic/aluminum composite packaging such as milk cartons and Tetra Pak packages, coated paper, laminated paper, paper-plastic packaging bags, ink-printed coated paper, label paper, and combinations of precious fiber paper and plastic film. It is suitable for use in waste paper recycling plants, pulp mills, packaging waste treatment plants, and environmentally friendly recycling resource plants.
MACHINE COMPONENTS
Our paper plastic recycling machine consists of multiple specialized machines, each designed to perform specific functions in the separation and processing workflow. These high-performance components work in perfect harmony to deliver exceptional results, ensuring efficient material recovery and superior output quality. Below are the key machines that make up our complete solution.

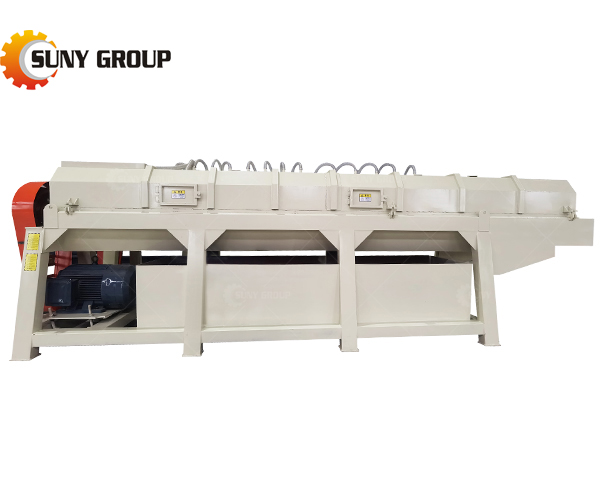

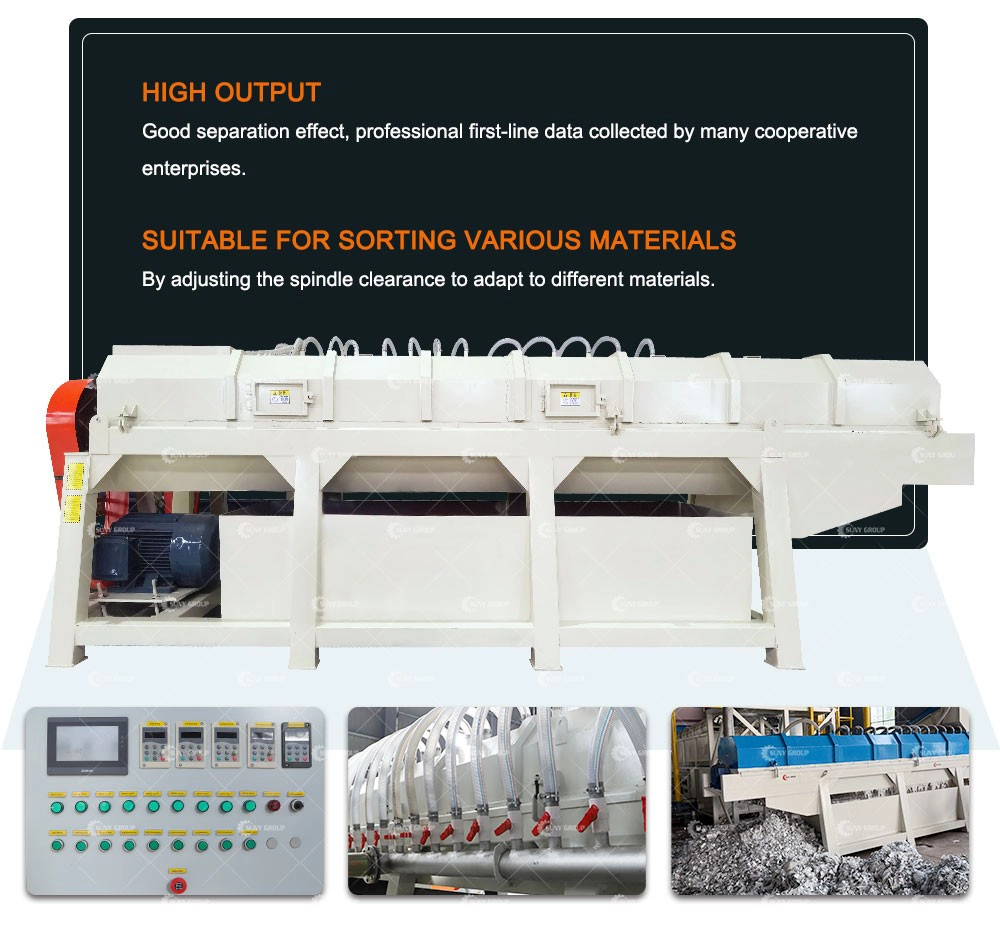

Paper-plastic Separator
The motor drives the spindle to rotate at high speed. The spindle blade drives the material to move from the feeding end to the discharging end.

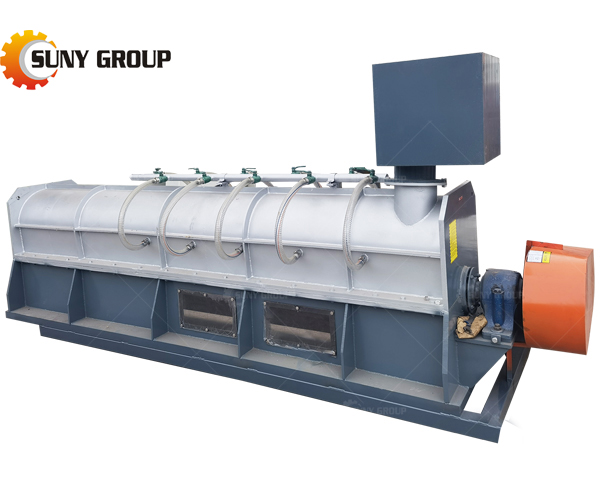

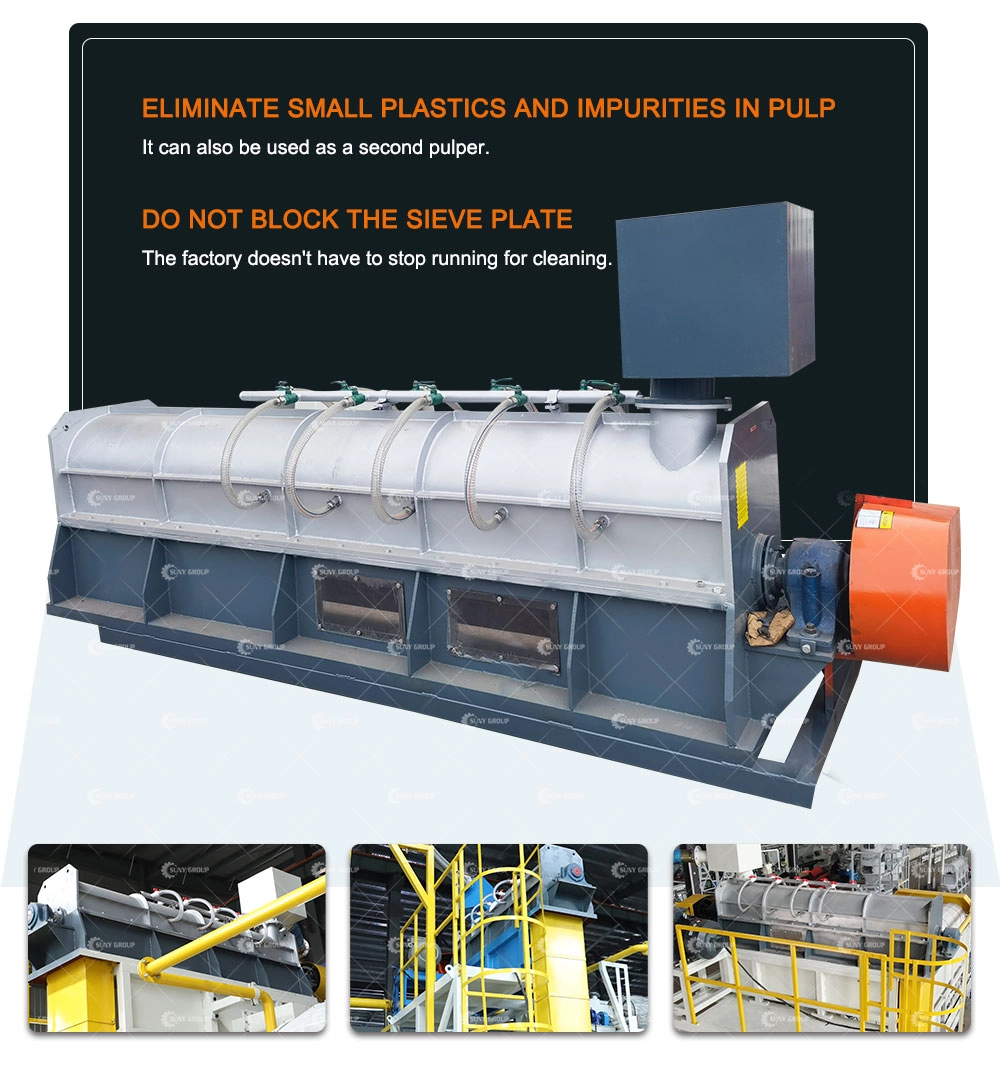

Pulp.Slag separator
Mainly used for sorting tail pulp after the fiber separator and pressure screen; the treated and sorted slurry is directly returned to the fiber separator or the slurry pool in front of the pressure screen for reuse.

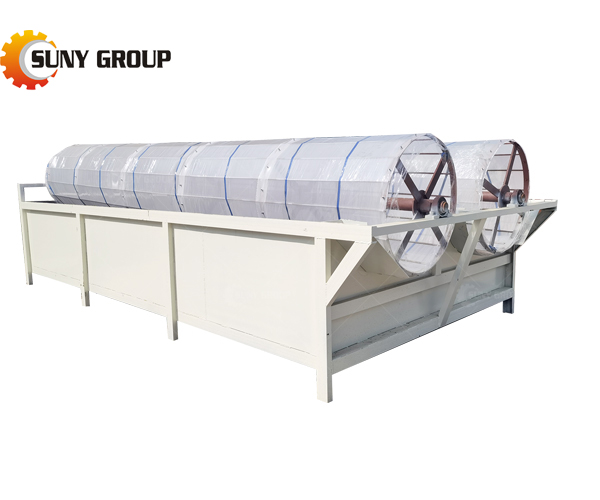

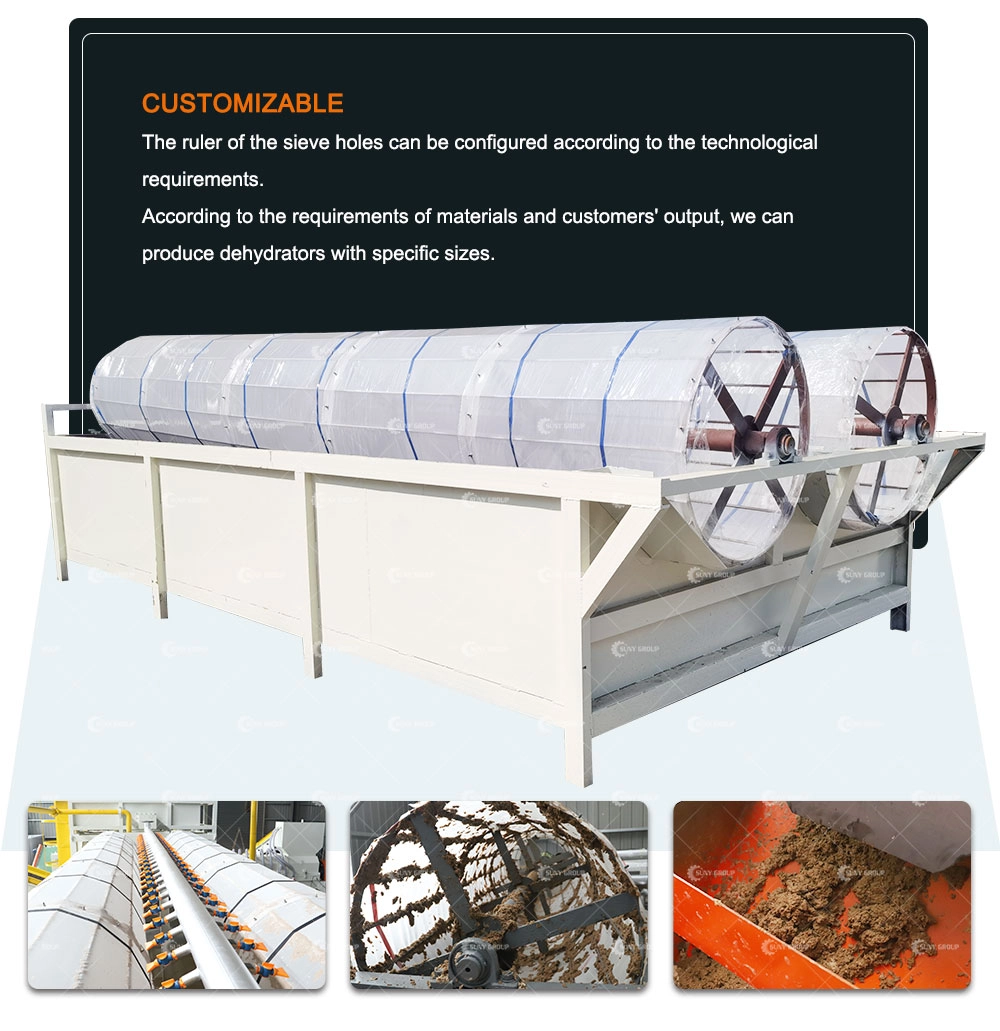

Pulp dewatering machine
The particles rotate to a certain height with the drum, are thrown and fall by gravity, and are filtered through the screen to form a sieve. The ruler of the sieveholes can be configured according to the technological requirements.

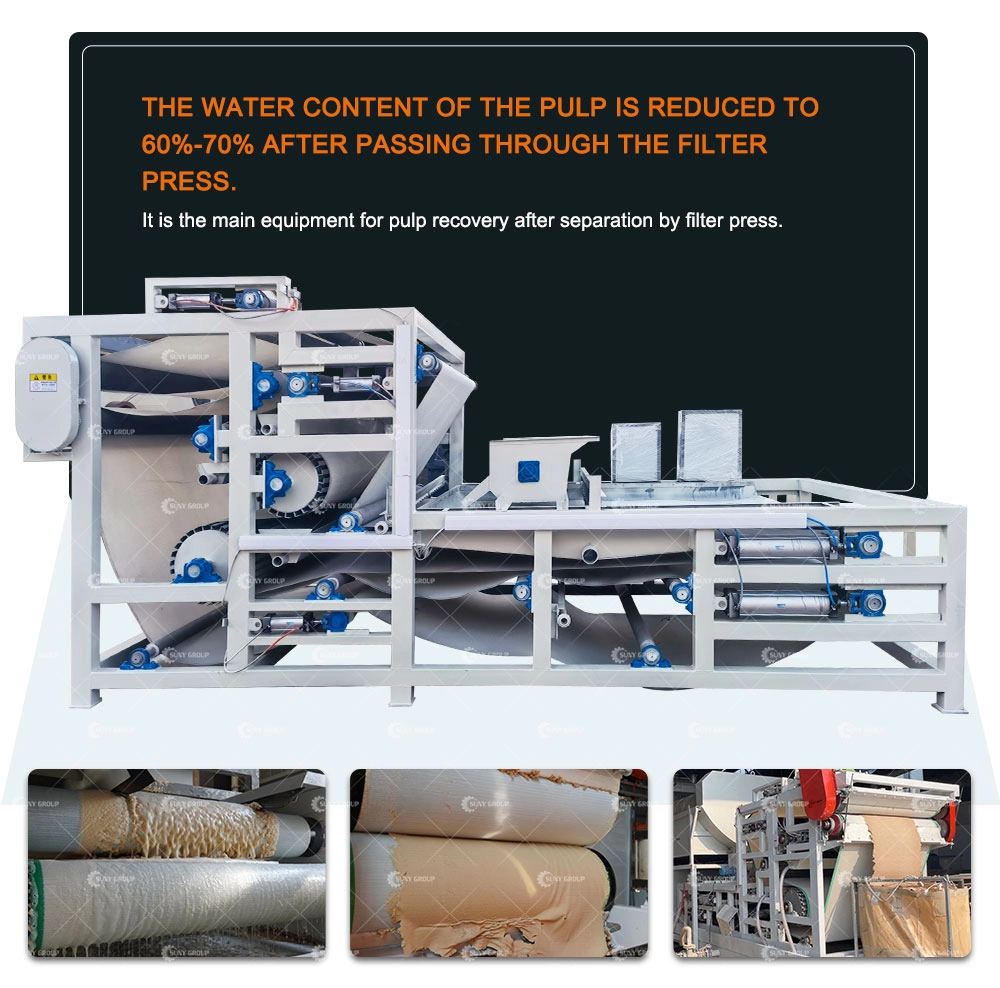

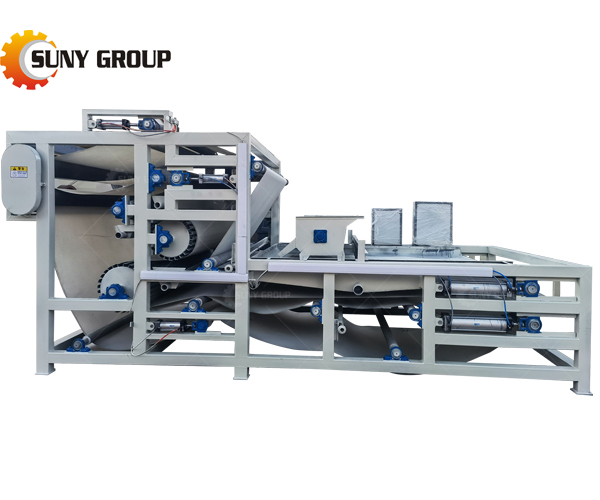

Pulp filter press
The pulp filter press uses the motor to drive the spindle to run and drive the polyester blanket. The pulp is transported to the filter press by the pump and evenly flows onto the polyester blanket.

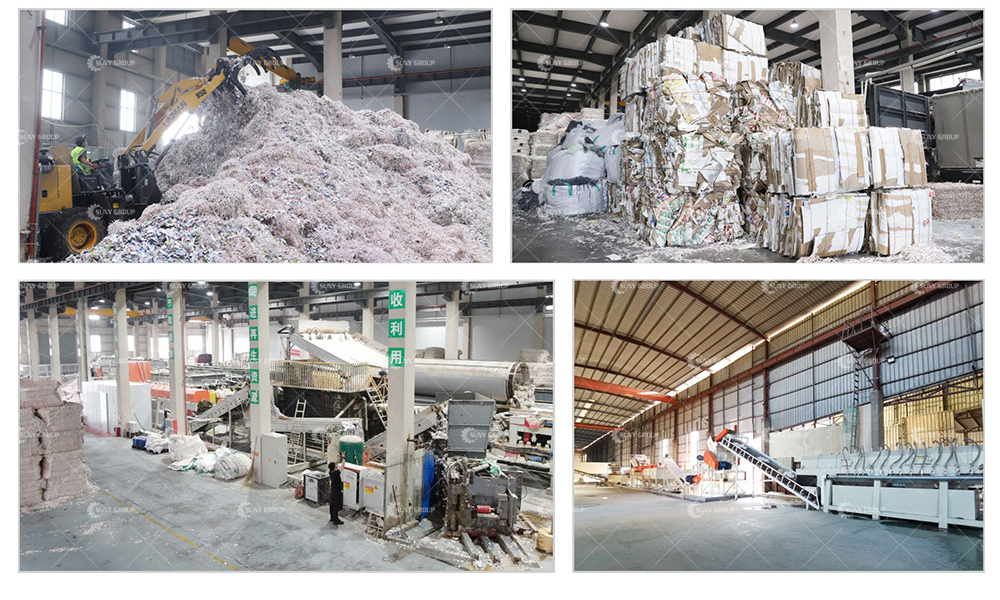

MANUFACTURING & PRODUCTION
According to the material, output and demand for final discharge. Our company specializes in the research and production of paper and plastic recycling equipment for 20 years, and has enough experience to customize the scheme for you.
